250V IP67 M12 Waterproof Circular Connector 4 5 8 Pin PA66 For PCB

Name: 250V IP67 M12 Waterproof Circular Connector 4 5 8 Pin PA66 For PCB
Brand: RIGOAL
Price: 1 USD

Best 250V IP67 M12 Waterproof Circular Connector 4 5 8 Pin PA66 For PCB wholesale

Brand Name : RIGOAL

Model Number : m12 panel mount connector

Certification : CE ROHs

Place of Origin : Shen zhen，China

MOQ : 100

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000

Delivery Time : 7~14

Packaging Details : 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.

Pin number : 2 3 4 5 6 8 12pin

Coded : A/B/D/X

Rated Voltage : 250V

Rated Current : 4A

Insert material : PA66+30%GF

Temperature range : -25~+85

Waterproof degree : ip67/ip68

Durability : 500

Contact Now

Waterproof Circular Connector IP67 A Code Type M12 4 5 8 Pin Right Angle for Male Female PCB Panel Mount Bulkhead Socket

Product Description

250V IP67 M12 Waterproof Circular Connector 4 5 8 Pin PA66 For PCB

Product Description

Product Name:

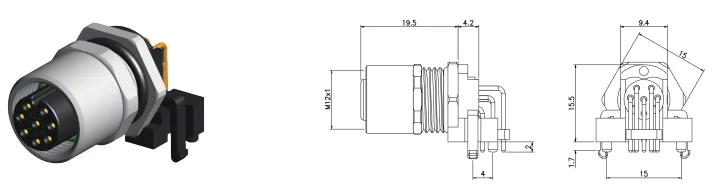

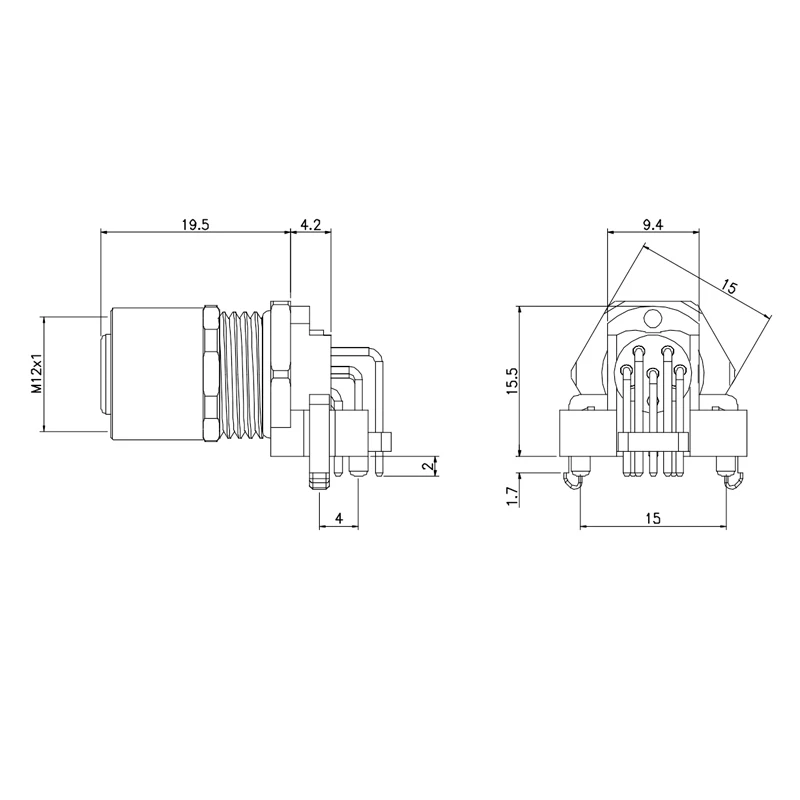

 replaced Phoenix Binder M12 90 degree angled PCB female and male panel mount connector
 model number:M12-R-S

 series:M12 Connector
 Core number:2,3,4(A/B/D),5(A/B),6,8(A/X),12,17Core
 Authentication:CE,RoHS
 waterproof:IP67/IP68

Advantages :

· Operating voltage 60V / 30V, rated current 3A / 1A.
 · 3 , 4 , 5 (B-Coding) , 6 , 8 ,12 , 17 poles are available. · Protection degree IP67. · Temperature range: -40℃~+105℃. · Cable
 length 1m , 2m , 3m or upon customized specification. · UL94-VO flame retardant degree.

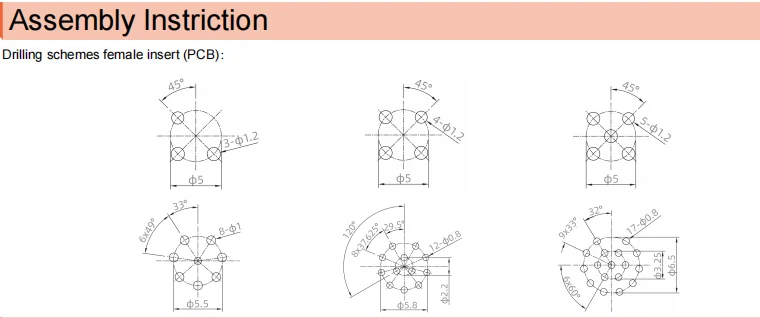

Alternative mount arrangements for solder cup or PCB Panel Mount and distribution version available Available as a loose piece or
 as a pre-made M12 cables

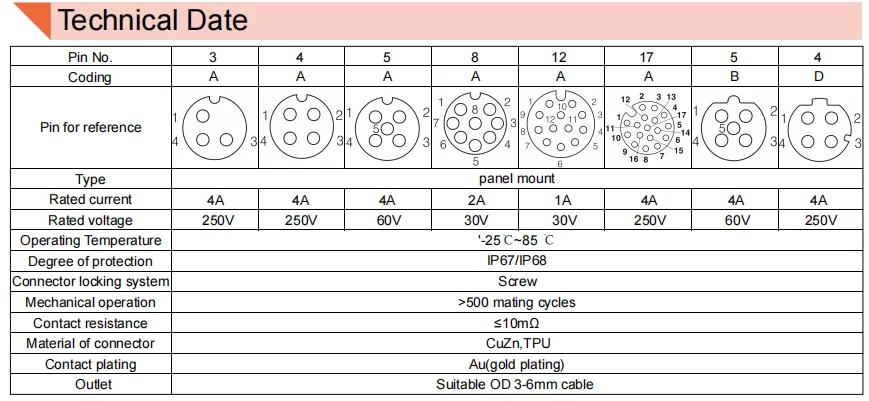

Specification

item	value
Place of Origin	Shen zhen,China
Brand Name	RIGOAL
Model Number	M12 panel connector
Type	DIN
Application	Automotive
Gender	Female
Pins	5P, 12p, 3P, 8P, 2P, 6P
Pin number	2 3 4 5 6 8 12pin
Coded	A/B/D/X
Rated Voltage	250V
Rated Current	4A
Insert material	PA66+30%GF
Temperature range	-25~+85
Waterproof degree	IP67
Certification	CE ROHs
Durability	500
Contacts resistance	<10MΩ

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
