4P PA66 M12 D Code Connector PG9 Fastening Thread Waterproof Connector

Name: 4P PA66 M12 D Code Connector PG9 Fastening Thread Waterproof Connector
Brand: RIGOAL
Price: 1 USD

Best 4P PA66 M12 D Code Connector PG9 Fastening Thread Waterproof Connector wholesale

Brand Name : RIGOAL

Model Number : m12 panel mount

Certification : CE，ROHS，ISO

Place of Origin : Shen zhen，China

MOQ : 100

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000

Delivery Time : 7~14

Packaging Details : 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.

Temperature Range : 20℃~+80℃

Insert Material : PA66

Contact Material : Copper Contact Gold Plating Contact

Rated Current : 4A/2A/1.5A

cable diameter : ≤4mm~≤8.0mm

contact material : copper(silverplated/gold)

termination : crimping/solder

Pins : 4p, 5P, 12p, 3P, 8P, 2P

Contact Now

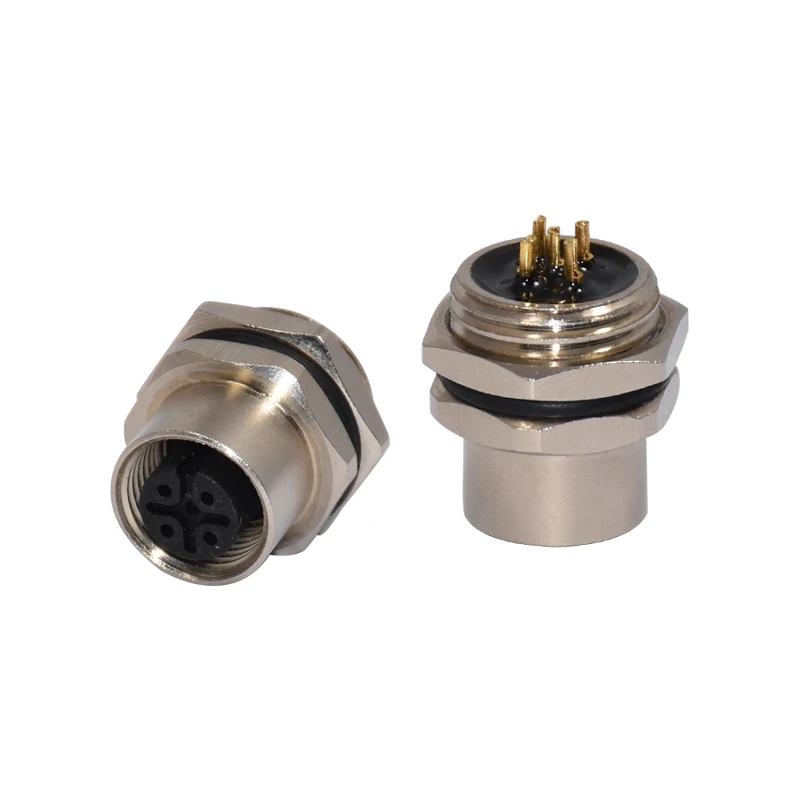

M12 D code 4pin panel mount solder type PG9 fastening thread waterproof connector

Product Description

4P PA66 M12 D Code Connector PG9 Fastening Thread Waterproof Connector

Overview :

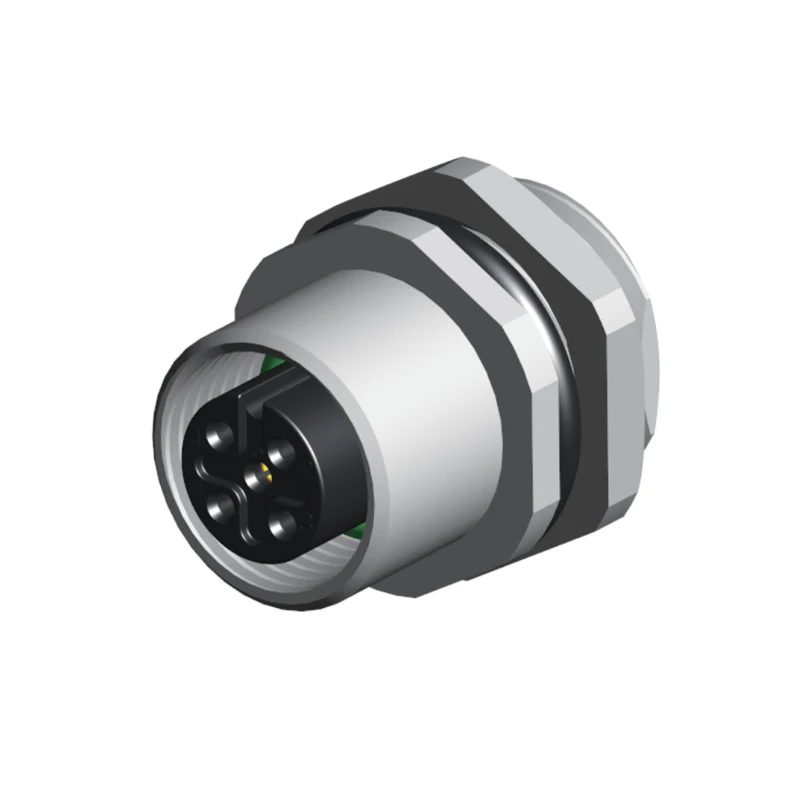

M12 flange seat is an M12 connector socket, used for panel, cabinet front (back) and other fixed installation socket.The
 plug shell is brass/cast zinc plated nickel, the pin body is PA, the contact surface is Au, the working temperature is -25℃~85℃,
 the product needle number is 4, 5, 8 or core number is 4 holes, 5 holes, 8 holes, the protection grade has reached IP67.

Features :

M12 socket waterproof performance is good, efficient and fast connection, save the user wiring time again, widely used
 in industrial machinery and equipment, transmission and transmission control system, all kinds of industrial sensors, testing
 instruments and meters, electronic instruments, household appliances, electromechanical, kitchen and other equipment signal
 transmission and current transmission.
