8 12 Pin M16 Circular Connector Zi Cu With Plastic Tail Pipe

Name: 8 12 Pin M16 Circular Connector Zi Cu With Plastic Tail Pipe
Brand: RIGOAL
Price: 1 USD

Best 8 12 Pin M16 Circular Connector Zi Cu With Plastic Tail Pipe wholesale

Brand Name : RIGOAL

Model Number : M16 assembly connector

Certification : CE，ROHS，ISO

Place of Origin : Shen zhen，China

MOQ : 100

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000

Delivery Time : 7~14

Packaging Details : 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.

Size : M16 assembly connector

Couping : Threaded couping

Terminination : Solder

Inset material : PA66+GF20%

Shell material : Zi/Cu with nikelplate PA66+GF20%

Contact material : copper(silverplated/gold)

Cable temperature : -25 to 85C or -40 to 105c

Cable OD : 4-8.5MM

Contact Now

M16 Series 2 3 4 5 6 7 8 12 Pin M16 Feamle Circular Connector With Plastic Tail Pipe

Product Description

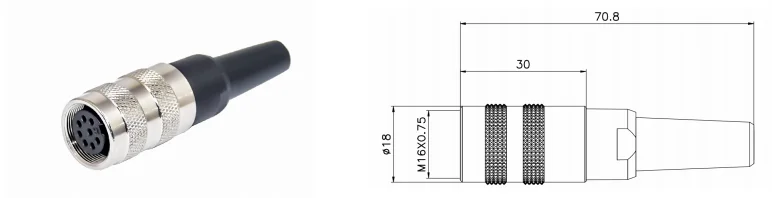

8 12 Pin M16 Circular Connector Zi Cu With Plastic Tail Pipe

connector with CE,ISO,ROHS standard or national standard, strong anti-interference, stable signal transmission performance; Aviation
 plug side molding, beautiful shape, with ordinary waterproof performance, long service life. Products are pass strict inspection,
 in line with Rohs standards, satisfies all the requirements for reliability test and the electrical test

Strong acid, alkali, chemical cleaning agent/reagent performance, resistance to oil, coolant, lubricant and emulsion
 propertiesProducts have been widely used in engineering machinery, auto parts production line, electrician electrical systems,
 instrumentation, mineral, oil and gas drilling anticorrosive engineering wind and solar power, water engineering, power
 substation, subways, airports, automatic control equipment, automation systems engineering, and many other fields. Meet user needs
 and exceed customer demand, is the rigoalof electronic service benchmark.

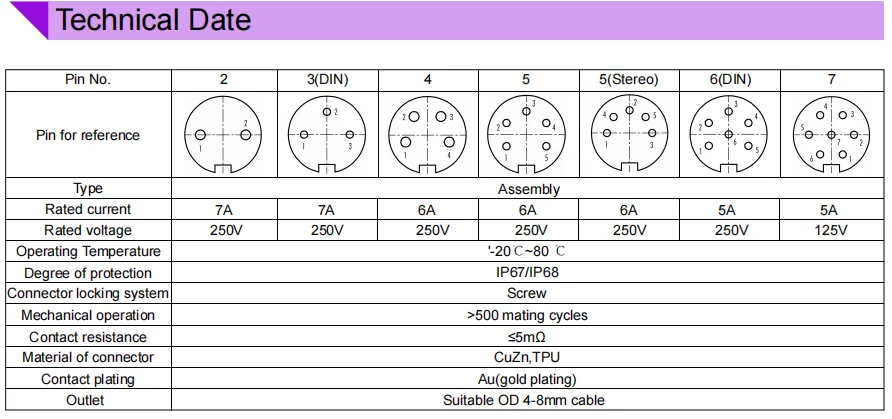

Specification

item	value
Place of Origin	China
	Guangdong
Brand Name	Rigoal(RG)
Model Number	M16
Type	ADAPTER
Application	Automotive
Gender	Male
Size	M16 assembly connector
Couping	Threaded couping
Terminination	Solder

Product Tags:

12 Pin M16 Circular Connector

Plastic Tail Pipe M16 Circular Connector

Zi Cu M16 Female Connector

8 12 Pin M16 Circular Connector Zi Cu With Plastic Tail Pipe Images
